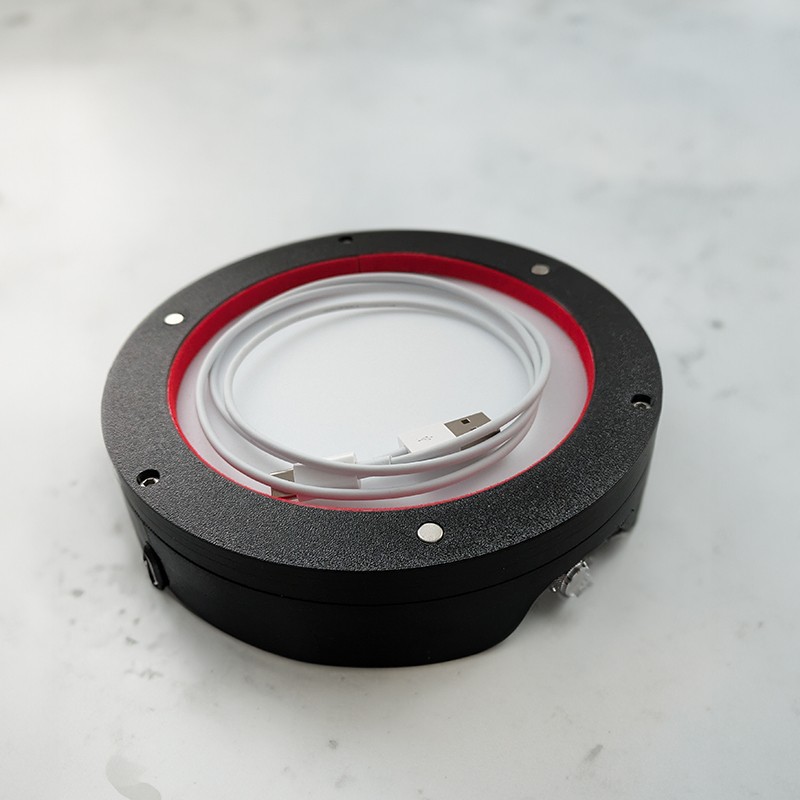

127mm Dimmable Flat Field Screen - Flatbox Plus
€99.00
Tax included
🔭
Flatbox Plus 127mm: Pro Performance for Mid-Size Refractors
🚀 Edge-Lit Tech: Ultra-slim design (40mm / 1.6") with laboratory-grade uniformity
🔌 Plug & Play: USB-C powered, ASIAIR & Smart Box compatible.
🎚️ CMOS Ready: Precision dimmer to avoid sensor saturation.
- 📏 Compatibility: Fits instruments up to 127mm (5") outer diameter.
- 💎 Included: Flat Panel + Protective Cap + USB-C Cable.
- 🛠️ Bespoke Service: Custom 3D-printed adapters available on request.
⚠️ IMPORTANT: Ensure your dew shield OUTER diameter does not exceed 127mm (5").
💎 Edge-Lit Technology: Professional Uniformity
The Flatbox Plus 127mm is specifically engineered for photographers using medium-sized refractors (80mm to 103mm class). Unlike standard back-lit panels that are bulky and prone to hotspots, our Edge-LED technology injects light laterally into a high-grade Light Guide Plate (LGP).
The "Plus" Advantage:
- Maximum Portability: Only 50mm (2") thick. It easily fits into your travel cases without the bulk of traditional 4" boxes.
- CMOS Optimized: Modern sensors (ZWO, QHY, Player One) are ultra-sensitive. Our built-in dimmer allows you to control the brightness for a perfect histogram every time.
- USB-C Powered: Low power consumption allows it to run directly from an ASIAIR or any standard Powerbank.
📊 Comparison: Basic Range vs. Flatbox Plus
| Feature | Basic Range | Flatbox Plus |
|---|---|---|
| LED Configuration | Direct Back-lit | Edge-Lit (Lateral) |
| Chassis Thickness | ~ 100 mm (4") | ~ 40 mm (1.6") |
| Intensity Dimmer | None (Fixed) | Included (Adjustable) |
🔭 Broad Compatibility
With a 127mm (5") usable aperture, this panel is the perfect match for the industry's most popular instruments:
- Askar FRA 500 / APO 103 / PHQ 80: Achieve edge-to-edge vignetting correction for these fast astrographs.
- Takahashi FC-100 / FC-76: The precision dimmer respects the high dynamic range of premium glass.
- Sky-Watcher 80ED / Esprit 80: A lightweight and effective solution for mobile setups.
- Multi-Instrument setups: Easily adaptable for smaller scopes via our bespoke adapter rings.
🛠️ Bespoke Adapter Rings: For total light sealing and automatic centering, we offer 3D-printed custom rings. Simply provide your dew shield's outer diameter, and we will create the perfect fit for your Flatbox Plus!
📦 Technical Specs & Package Content
Specifications:
- Usable Aperture: 127 mm (5")
- Power Input: USB-C (5V)
- Design: Ultra-compact (1.6" thickness)
- Flicker-free Dimming
In the Box:
- 1x Flatbox Plus 127mm Panel
- 1x Rigid Protective Cap
- 1x USB-A to USB-C Cable
💡 Expert Tip: "Adjust the dimmer to achieve an exposure time of at least 1 second. This ensures a stable light source and impeccable Master Flats for your stacking process in PixInsight or Siril."
REF038
2 Items
New
