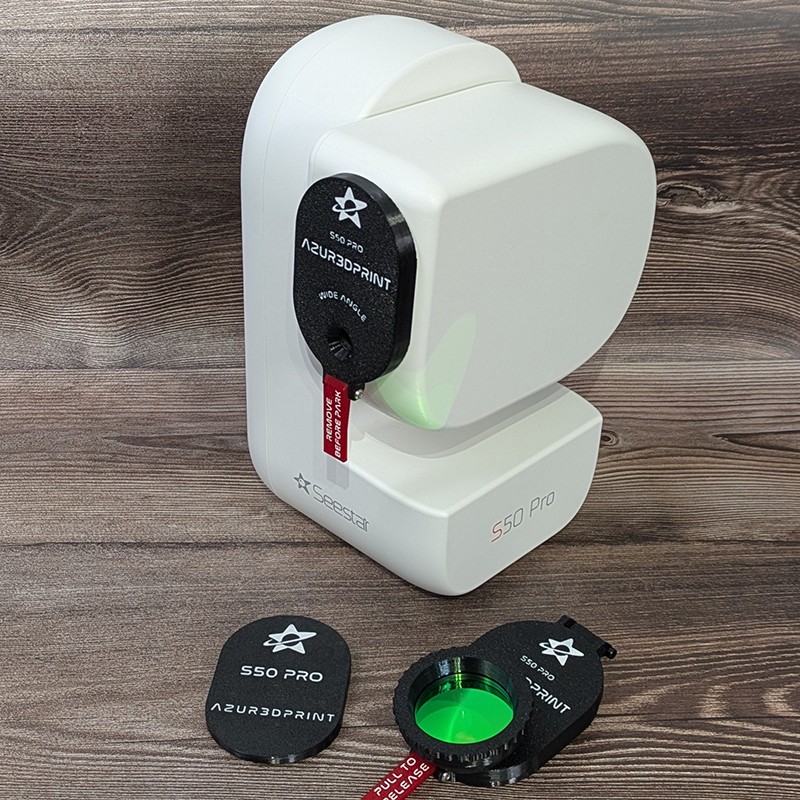

Wide Field Landscape Pack — Seestar S50 Pro
search
  • Wide Field Landscape Pack — Seestar S50 Pro
  • Wide Field Landscape Pack — Seestar S50 Pro
  • Wide Field Landscape Pack — Seestar S50 Pro
  • Wide Field Landscape Pack — Seestar S50 Pro

Wide Field Landscape Pack — Seestar S50 Pro

€22.90
Tax included

Dedicated to long time-lapses and nightscapes on ZWO Seestar S50 Pro: shield the primary lens while keeping the wide-angle camera 100% unobstructed.

  • 🛡️ Primary Lens Shielding: Seals and isolates the 50mm front objective from nocturnal dew and dust during all-night Milky Way sessions.
  • 📐 Low-Profile Zero-Vignetting Port: Flared bevel allows free illumination for the context sensor without needing a bulky dew shield.
  • 🌌 Optional 2" Filter Tulip: Mount standard 2" (M48) Dual-Band or light pollution filters directly over the wide sensor.
  • 🔒 Safety Systems: Choose between Quick-Release (ejection) and Anti-Drop (hinged swing without detachment).
Safety System: Quick-Release (Safety Ejection)
Optional 2" Filter Tulip: Without tulip (Protective plate only)
Quantity
Disponible / En cours d'impression

Wide Field Landscape Pack — ZWO Seestar S50 Pro

Protects the 50mm primary objective during wide-field time-lapses, with optional 2" filter adaptation

When running long Milky Way time-lapses, star trails, or nightscape captures on your ZWO Seestar S50 Pro, only the secondary wide-angle sensor is working. Leaving the primary 50 mm lens exposed all night long invites heavy condensation, frost, pollen, and airborne particles for zero optical benefit. Precision manufactured in Cannes, France, the Wide Field Baseplate shields the primary objective while providing an unobstructed, low-profile optical window for wide-field imaging.

🔬 Field Engineering: Optics Protection & Compactness

🛡️ Primary Objective Barrier

Firmly seals and caps the 50 mm triplet objective during wide-angle runs. Protects delicate front anti-reflective coatings from unnecessary dew cycles and airborne contaminants.

📐 Low-Profile Clear Port

The aperture facing the wide-angle camera is chamfered outward to guarantee zero corner shadowing. Its slim mechanical thickness prevents dew accumulation around the sensor without requiring an extra dew shield.

🌌 Optional 2" Filter Tulip: Wide-Field Narrowband Imaging

For astro-imagers looking to capture expansive Milky Way structures under light-polluted skies or reveal large emission nebulae in narrowband, our 67.4° Tulip Mount snaps onto the baseplate:

  • Calculated 67.4° Flared Cone: Allows the 6 mm context sensor to clear the 2" filter glass with zero edge falloff.
  • Standard M48 Thread: Holds standard 2" Dual-Band or light-pollution filters completely flat and stable.

⚙️ Configure your hardware setup:

1. Kinematic Park Safety System:

  • Quick-Release Baseplate: Direct magnetic plate fitted with a "Remove Before Park" flag. Ejects the unit forward during an unexpected park cycle to protect internal motors.
  • Anti-Drop Baseplate (+€12.00): Articulated hinge with "Pull To Release" latch. Pivots clear of the crush path at park without ever detaching from the Seestar S50 Pro.

2. Optional 2" Filter Tulip:

  • Select the baseplate alone for pure lens protection during time-lapses, or add the 67.4° Flared Tulip for wide-field 2" filter experimentation.

"Letting your expensive 50mm primary triplet soak in cold nighttime moisture while you run a 6-hour Milky Way time-lapse with the secondary camera is unnecessary wear. This baseplate caps the main lens safe and dry. And for experimental shooters, the optional tulip lets you screw a 2-inch H-Alpha or Dual-Band filter in front of the wide camera without vignetting."

— Vincent, Founder of Azur3dprint

Technical Specifications

  • Instrument Compatibility: Specifically engineered for ZWO Seestar S50 Pro.
  • Primary Function: Complete moisture/dust barrier for the 50 mm lens while opening the wide context sensor.
  • Optional Tulip Spec: 67.4° flared cone for standard 2" astronomical filters (M48×0.75).
  • Safety Systems: Available in Quick-Release or hinged Anti-Drop versions.
  • Magnets: N52 Neodymium embedded during printing (glue-free, dew-resistant).
  • Material: Technical durable matte black PETG.
  • Manufacturing: 3D printed, calibrated, and assembled in Cannes, France.
A3D-S50P-WF
9 Items

Data sheet

Type de filament
Petg
